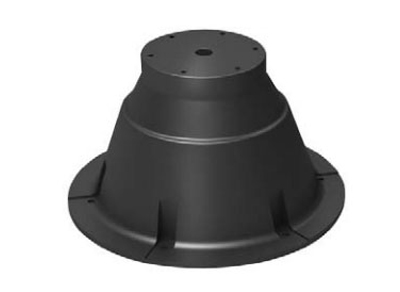

HSP Type Fender

Classified as a system fender, identical to the spool fender, it is applied, with excellent compression and recovery, when the fender installation space is narrow or the shock-absorbing range is wide. The cone type HSP fender produced using our specialized manufacturing technique is widely exported to Japan, Southeast Asia, Europe, and the US.Compression Test

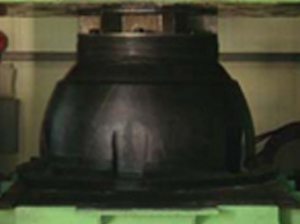

Compression Test

  • Deflection 0%

  • Deflection 30%

  • Deflection 50%

  • Deflection 70%

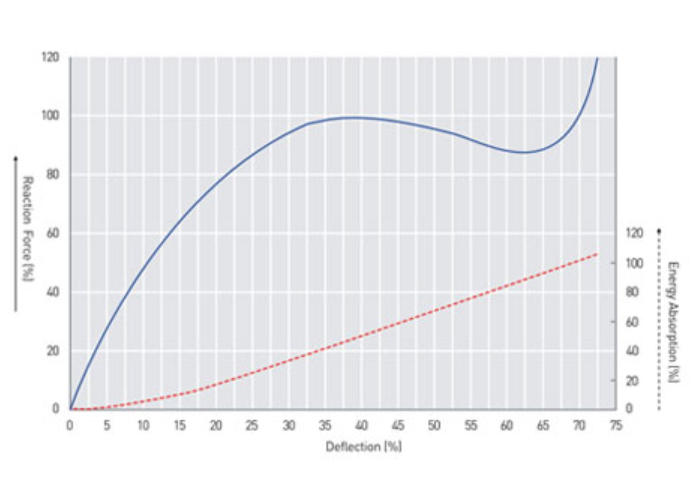

Performance Curve

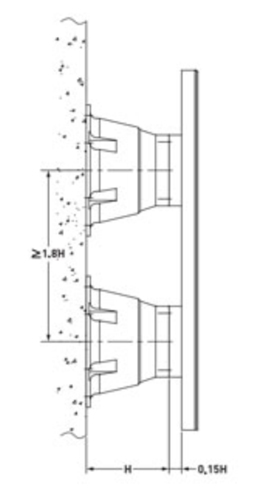

Clearances

3D Model

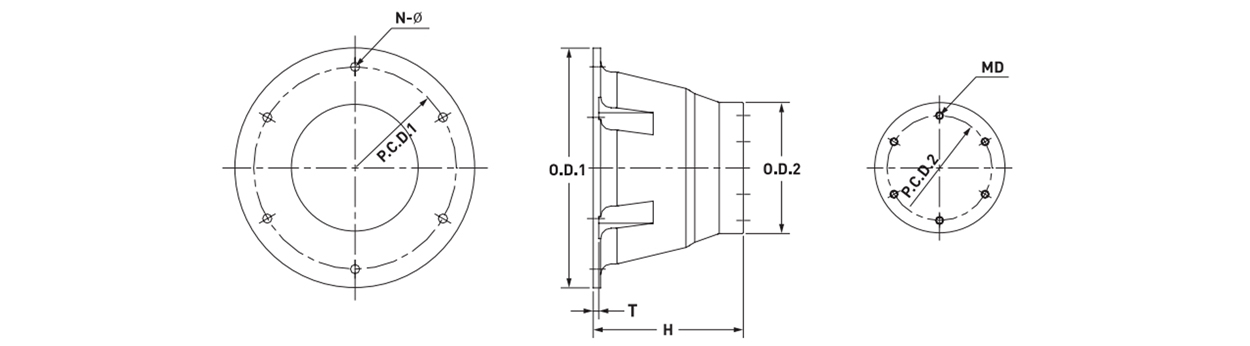

Specification / Dimensions

Height MD O.D.1 P.C.D.1 O.D.2 P.C.D.2 T N-∅
300H M20 (3/4) 500 440 262 210 18 4-26
350H M20 (3/4) 575 510 306 245 20 4-26
400H M20 (3/4) 650 585 350 280 20 4-26
500H M24 (1) 820 730 436 350 22 4-30
600H M24 (1) 900 810 525 420 23 4-30
700H M30 (1 1/4) 1120 1020 615 490 26 4-38
800H M36 (1 1/2) 1250 1165 700 560 31 6-44
900H M36 (1 1/2) 1450 1313 785 630 36 6-44
1000H M42 (1 3/4) 1600 1460 875 700 38 6-50
1150H M42 (1 3/4) 1850 1550 1000 805 41 6-50
1200H M42 (1 3/4) 1920 1750 1050 840 46 8-50
1300H M48 (2) 2080 1900 1140 910 50 8-60
1400H M48 (2) 2240 2040 1230 980 53 8-60
1600H M48 (2) 2500 2330 1400 1120 80 8-60
1800H M56 (2 1/4) 2880 2620 1575 1260 90 10-70
2000H M56 (2 1/4) 3200 2920 1700 1400 100 10-70

- MD : Anchor Size See Page 45 ~ 47
